Web Tension - Series 20 Tensioncell

Features

  • Thin Profile, only 1-3/8” wide
  • Up to 3 VDC output direct from the transducer
  • Capacity ranges up to 90 pounds
  • 1000% overload protection
  • Side or base mount inside or outside the machine frame
  • Thru-hole roll support with a self-aligning bearing or bushing for rotating or non-rotating shaft
  • Made in the U.S.A.
series 20
Series Model Shaft Mounting Max Load Capacity (lbs.)* Max Output/Unit (VDC) Capacity & Dimensions Model Drawing** Manual
20 BB20 Non-Rotating Side 90 3 Series 20 Model BB20 TBD Series 20 Type B&C Manual
20 BC20 Rotating Side 90 3 Series 20 Model BC20 TBD Series 20 Type B&C Manual

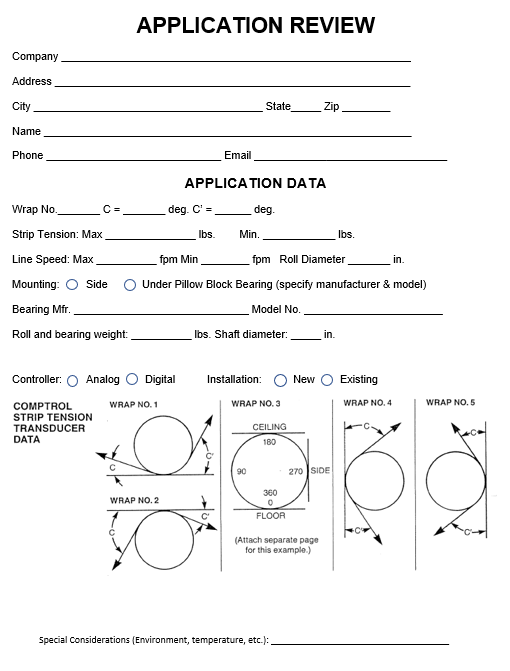

*The Maximum Load Capacity is based off the resultant load and not the Web Tension. Please use our sizing software (add link) or contact one of our engineers to walk you through sizing your load cell. You can also use our Application Data Sheet and email to This email address is being protected from spambots. You need JavaScript enabled to view it..

**Other drawing formats available. Please note that dimensions are not exact.
