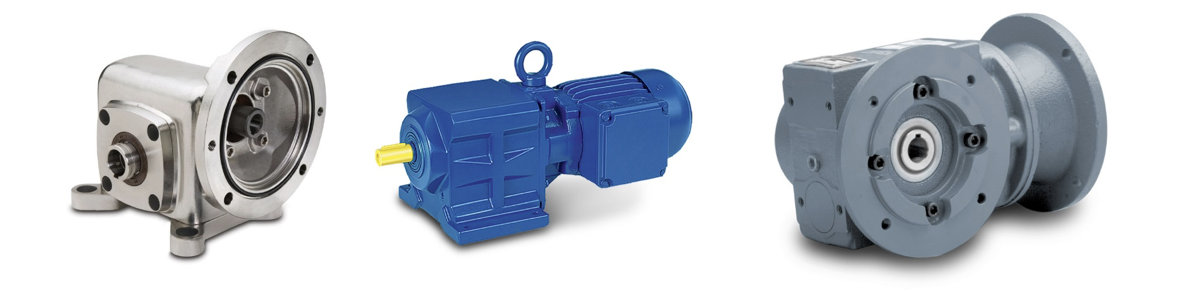

Types of Gearboxes
| Type of Gearbox | Shaft Arrangement | Mounting |
|---|---|---|
| Concentric | High and low-speed shafts are on the same horizontal and vertical plane | Foot mounted |
| Parallel | High and low-speed shafts are on the same horizontal plane and parallel to each other | Foot mounted |
| Right Angle | High and low speed shaft have a 90-degree relationship | Foot mounted |
| Shaft Mount | The gearbox is mounted directly onto and supported by the driven shaft | Shaft mounted |
Comptrol can help you size, design, and provide STEP or AutoCAD drawings for all of your application needs.
